Trajectory Analysis¶

FastSASA can calculate SASA over DCD and XTC trajectories directly from the CLI. It reuses accelerator memory across frames instead of rebuilding a full structure for every frame. This is what makes trajectory analysis the main GPU use case.

GPU-resident in FastSASA means reusable buffers, radii, topology metadata, and working arrays stay on the GPU. It does not mean the whole trajectory is loaded into VRAM. Coordinates are streamed in batches, which keeps the workflow usable on consumer GPUs.

Backend selection is automatic (Vulkan, then CUDA, then threaded CPU) and can be pinned with --backend auto|vulkan|cuda|cpu. A native threaded CPU path is always available with --backend cpu --threads N; --cpu is shorthand for --backend cpu.

Recommended Command¶

For a protein trajectory:

fastsasa trajectory \
  --topology topology.pdb \
  --trajectory trajectory.xtc \
  --frames : \
  --filter protein \
  --output protein_sasa.csv

--frames : means process every frame. If --batch-size is omitted, FastSASA chooses a conservative size for the active backend and trajectory. CUDA can use multiple streams; Vulkan records one command buffer and performs one queue submission per batch. Neither backend loads the whole trajectory into VRAM. Use --frames :N when you want the first N frames for a quick benchmark or smoke test.

Use an explicit batch size only for fixed benchmarking:

--batch-size 16

Use this same fastsasa trajectory command in scripts and benchmark tooling. Older positional trajectory commands are still accepted for compatibility, but new workflows should use explicit --topology and --trajectory options. Trajectory resolution follows the same defaults as the structure CLI: Shrake-Rupley uses 100 points and Lee-Richards uses 20 slices unless --resolution is provided.

The solvent probe radius also follows the structure CLI default of 1.4 Angstrom. Change it explicitly when needed:

--probe-radius 1.2

Both GPU algorithms use FP64 by default; in FP64, Vulkan and CUDA results are bit-identical to the CPU reference. Add --precision fp32 to opt into the faster single-precision kernels. See the precision section of the CLI reference for the FP32 accuracy bounds and the shaderFloat64 requirement for Vulkan FP64.

CPU reference run:

fastsasa trajectory \
  --topology topology.pdb \
  --trajectory trajectory.xtc \
  --frames :100 \
  --batch-size 8 \
  --summary \
  --filter protein \
  --backend cpu --threads 8

Input Formats¶

Input	Native support
PDB topology	yes
mmCIF topology	yes
PSF topology	yes
DCD trajectory	yes
XTC trajectory	yes
Other trajectory formats	use MDAnalysis or MDTraj

The accelerator API itself is format-neutral. Any reader that produces coordinate arrays can feed FastSASA.

Runtime backend selection is automatic: Vulkan, then CUDA when compiled and available, then threaded CPU. Use --backend auto|vulkan|cuda|cpu to pin a backend from the CLI. The environment variable FASTSASA_BACKEND=auto|vulkan|cuda|cpu makes the same choice for the C and Python APIs; the flag and the environment variable are equivalent. Normal workflows can leave both at auto.

Explicit-Solvent MD¶

FastSASA always reads the complete topology so its atom order stays aligned with the DCD/XTC coordinates. It then forms the SASA calculation universe:

hydrogen atoms are excluded unless --hydrogen is used;
PDB/mmCIF HETATM records are excluded unless --hetatm is used;
--filter, when present, further limits the calculation universe.

This separation matters: removing atoms while parsing a topology would shift trajectory indices and could attach coordinates to the wrong atoms.

PSF does not store the PDB ATOM/HETATM distinction. Hydrogen exclusion still works from the atom element, but protein, ligand, lipid, water, and ion scope must be expressed with --filter.

If you omit --filter, all atoms eligible under the hydrogen/HETATM policy participate in SASA and FastSASA prints a warning.

For standard protein SASA from an explicit-solvent or membrane simulation:

--filter protein

For a protein-ligand complex:

--filter 'complex, protein or resn ABU'

For a PDB/mmCIF topology where the ligand is stored as HETATM, include those records before filtering:

--hetatm --filter 'complex, protein or resn ABU'

For PSF topologies, select subunits by PSF segment name (segid) rather than PDB chain — see the PSF segment naming notes in Selection Syntax, which also covers the distinction between --filter (what participates in the calculation) and --select (what is reported).

If you are comparing against VMD measure sasa, check the atom radii first — see the radius note in the CLI Reference.

Frame Selection¶

--frames uses Python-style indexing:

Spec	Meaning
`:`	all frames
`10`	only frame 10
`10:20`	frames 10 through 19
`10:20:2`	every second frame from 10 through 19
`-1`	last frame
`-10:`	from the 10th-from-last frame through the last frame

For the old “first N frames” behavior, use --frames :N.

DCD frame selection uses direct file seeking. XTC uses the same frame syntax; depending on the available trajectory backend, jumping backward or to the last frame may require reopening the stream and skipping frames.

Output Modes¶

Summary output reports trajectory throughput and summed SASA:

fastsasa trajectory \
  --topology topology.psf \
  --trajectory trajectory.dcd \
  --summary \
  --filter protein \
  --output protein_sasa_summary.csv

Add --classes when you want the same trajectory output split into polar, apolar, and unknown SASA classes:

fastsasa trajectory \
  --topology topology.psf \
  --trajectory trajectory.dcd \
  --frames : \
  --filter protein \
  --classes \
  --output protein_sasa_classes.csv

With --select, class columns are reported for each selected atom set:

fastsasa trajectory \
  --topology topology.psf \
  --trajectory trajectory.dcd \
  --filter protein \
  --select 'r677_ap, segid AP and resi 677' \
  --classes \
  --output r677_ap_sasa_classes.csv

--classes is a reporting split only. It does not change the geometric SASA calculation.

Per-residue output:

fastsasa trajectory \
  --topology topology.pdb \
  --trajectory trajectory.xtc \
  --residue \
  --filter protein \
  --output residue_sasa.csv

If --output is omitted, trajectory CSV is written to stdout. Warnings and errors are still written to stderr.

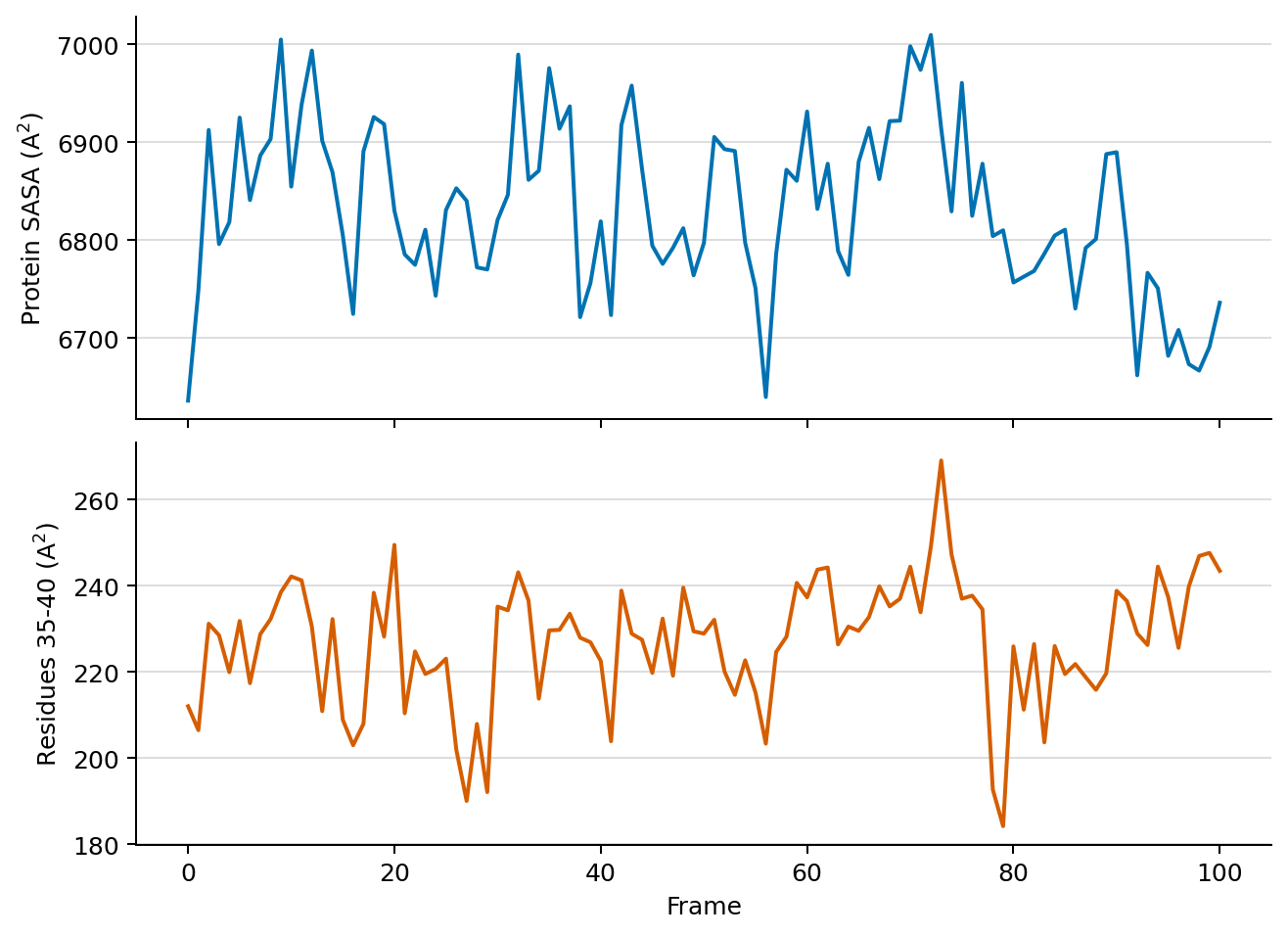

Total and selected SASA time series

Example FP64 Shrake-Rupley output for 101 trajectory frames. The upper panel shows protein SASA; the lower panel reports residues 35-40 in that protein context. FastSASA writes these values directly as per-frame CSV.

Coordinate Preparation¶

FastSASA does not wrap, unwrap, reimage, center, or reconstruct periodic trajectories. Prepare coordinates upstream with the MD tool appropriate for your workflow. The MDAnalysis tutorial shows the Python path for transformations and complex selections. Coordinates must be finite and should remain spatially compact. FastSASA rejects frames whose bounds would require an impractically large dense cell grid instead of attempting a multi-gigabyte allocation.
